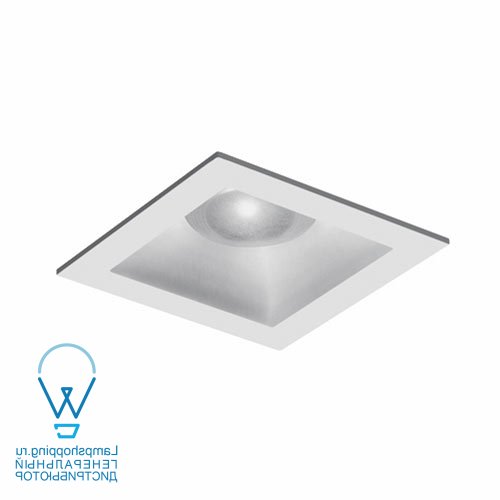

PARABOLA 100 S 80° 2700K BCO встраиваемый светильник Artemide

• Light fixture with high-performance LED light sources. • Ceiling installation. • Composed by: frame, body, lens, fixing springs. • Frame in injection mould of aluminium. • Heat sink body in extruded aluminium. • Lens in policarbonate with 3 different versions of beam. • Fixing springs in harmonic steel. • White monochromatic LEDs available in 3 colours temperatures: Very Warm = 2700K Warm = 3000K Neutral = 4000K • Electrical connection to the driver by means of a FEP-FEP cable and a terminal board. • IP Rating IP40. • Insulation class III. • Technical features of light fixtures in compliance with EN60598-1. • Installation must be carried out by specialized personnel. • Carefully follow the instructions.

PARABOLA 100 S 80° 2700K BCO встраиваемый светильник Artemide

DESIGN BY	Artemide 2010
MATERIALS	Aluminium
DESCRIPTION	• Light fixture with high-performance LED light sources. • Ceiling installation. • Composed by: frame, body, lens, fixing springs. • Frame in injection mould of aluminium. • Heat sink body in extruded aluminium. • Lens in policarbonate with 3 different versions of beam. • Fixing springs in harmonic steel. • White monochromatic LEDs available in 3 colours temperatures: Very Warm = 2700K Warm = 3000K Neutral = 4000K • Electrical connection to the driver by means of a FEP-FEP cable and a terminal board. • IP Rating IP40. • Insulation class III. • Technical features of light fixtures in compliance with EN60598-1. • Installation must be carried out by specialized personnel. • Carefully follow the instructions.
Product name	Parabola100_Square_17W_2700K_76°_White
Article Code	NL1907380Y006
Colour	White
Series	Architectural
Environment	Indoor
Area contract	Hospitality Hotel, Hospitality Restaurant, Retail, Office, Museum & Exihibitions, Private Residence
Base Length	cm 9.4
Base Width	cm 9.4
Recessed depth	cm 9.5
Weight	kg 0.5
Watt	17W
Luminous Flux (lm)	1290 lm
Typology	1
Color temperature (K)	2700K
Class	A
IP	IP40 Dimmable
Страна происхождения	Италия
Категория	Встраиваемые светильники
Variants	NL1906940K004, NL1906940K002, NL1906940K006, NL1906940W004, NL1906940W002, NL1906940W006, NL1906960K004, NL1906960K002, NL1906960K006, NL1906960W004, NL1906960W002, NL1906960W006, NL1907140K004, NL1907140K002, NL1907140K006, NL1907140W004, NL1907140W002, NL1907140W006, NL1907140Y004, NL1907140Y002, NL1907140Y006, NL1907160K004, NL1907160K002, NL1907160K006, NL1907160W004, NL1907160W002, NL1907160W006, NL1907160Y004, NL1907160Y002, NL1907160Y006, NL1907180K004, NL1907180K002, NL1907180K006, NL1907180W004, NL1907180W002, NL1907180W006, NL1907180Y004, NL1907180Y002, NL1907180Y006, NL1907340K002, NL1907340K004, NL1907340K006, NL1907340W002, NL1907340W004, NL1907340W006, NL1907340Y002, NL1907340Y004, NL1907340Y006, NL1907360K002, NL1907360K004, NL1907360K006, NL1907360W002, NL1907360W004, NL1907360W006, NL1907360Y002, NL1907360Y004, NL1907360Y006, NL1907380K002, NL1907380K004, NL1907380K006, NL1907380W002, NL1907380W004, NL1907380W006, NL1907380Y002, NL1907380Y004, NL1907380Y006
